does high-speed stamping affect the precision of precision terminals

Key Precision Influences of High-Speed Terminal Stamping

High-speed stamping usually runs at 1000–6000 strokes per minute. The core precision deviations mainly come from dynamic operation rather than the process itself:

- Equipment Vibration & Position Deviation: Long-term high-frequency impact causes slight body vibration and slider deflection, resulting in step distance errors and dimensional drift of terminals.

- Mold Wear & Clearance Variation: Precision terminals are made of thin copper alloy and stainless steel materials with ultra-small stamping clearances. Frequent high-speed friction accelerates blade wear, causing burrs, collapse angles and dimensional out-of-tolerance.

- Material Spring back Instability: Thin metal materials are prone to inconsistent spring back during high-speed bending, leading to angle and shape deviation of stamped terminals.

- Feeding Synchronization Error: Unsynchronized high-speed feeding and positioning offset will accumulate tolerances and affect the overall consistency of terminal products.

Core Solutions to Stabilize Stamping Precision

The precision problems caused by high-speed stamping are completely controllable. Professional precision stamping factories adopt the following standardized control measures to ensure product accuracy and consistency:

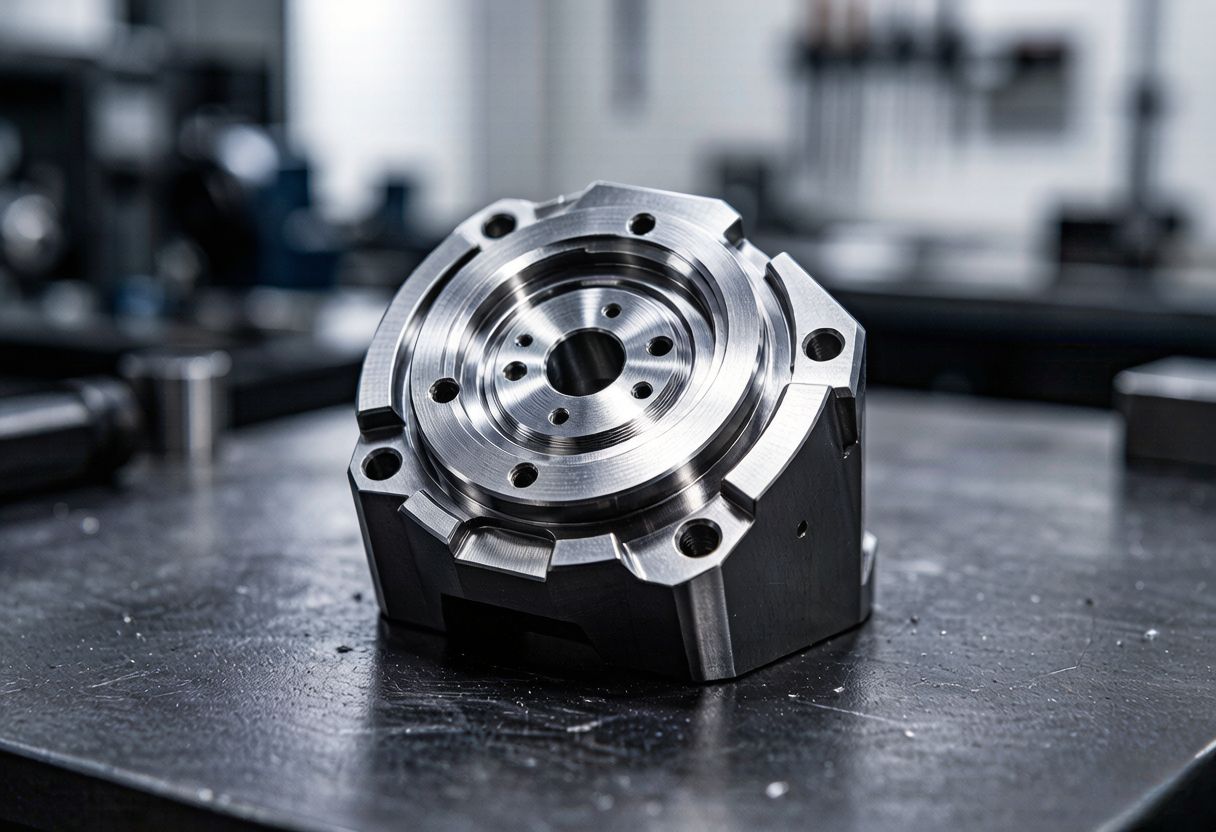

- High-Precision Progressive Mold: Adopt tungsten steel blade and internal guide structure, control the mold clearance within 0.003mm, and greatly reduce stamping deformation and wear.

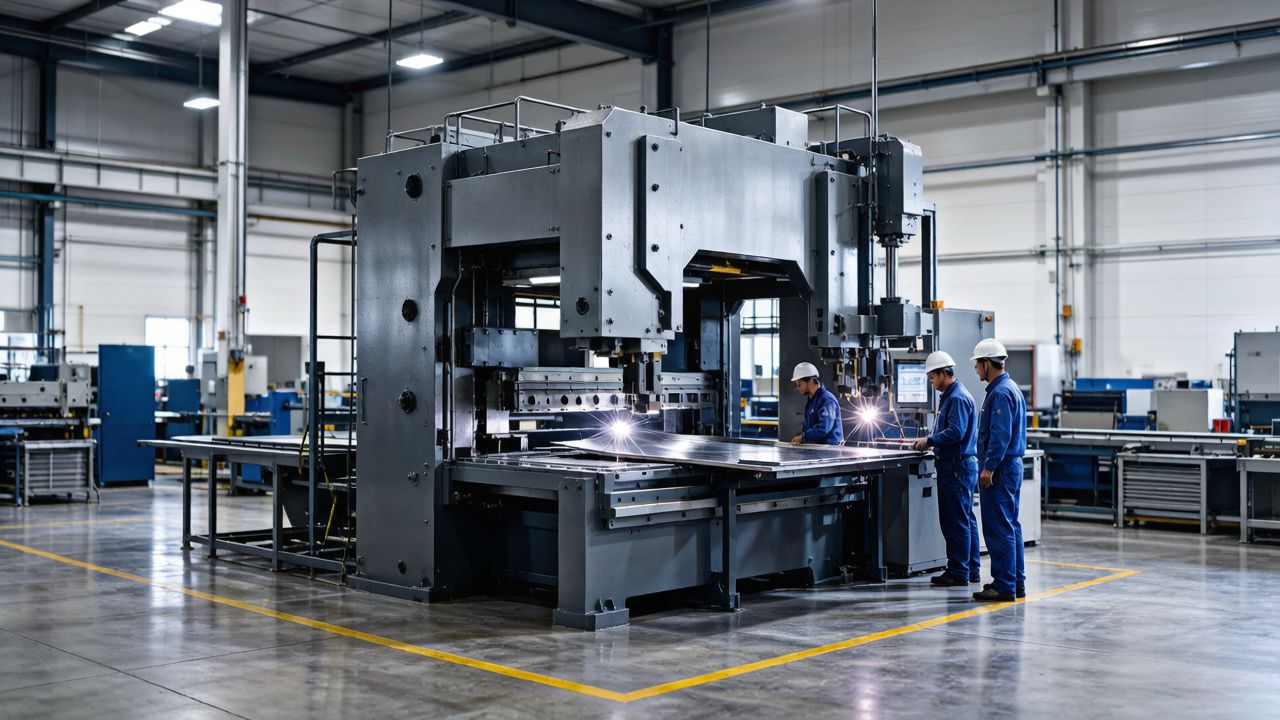

- High-Rigidity Stamping Equipment: Equip with closed-loop gantry equipment and servo feeding system to improve repeated positioning accuracy and suppress operating vibration.

- Optimized Process Parameters: Match scientific stamping speed and material clearance according to material thickness, and add spring back compensation structure for bending processes.

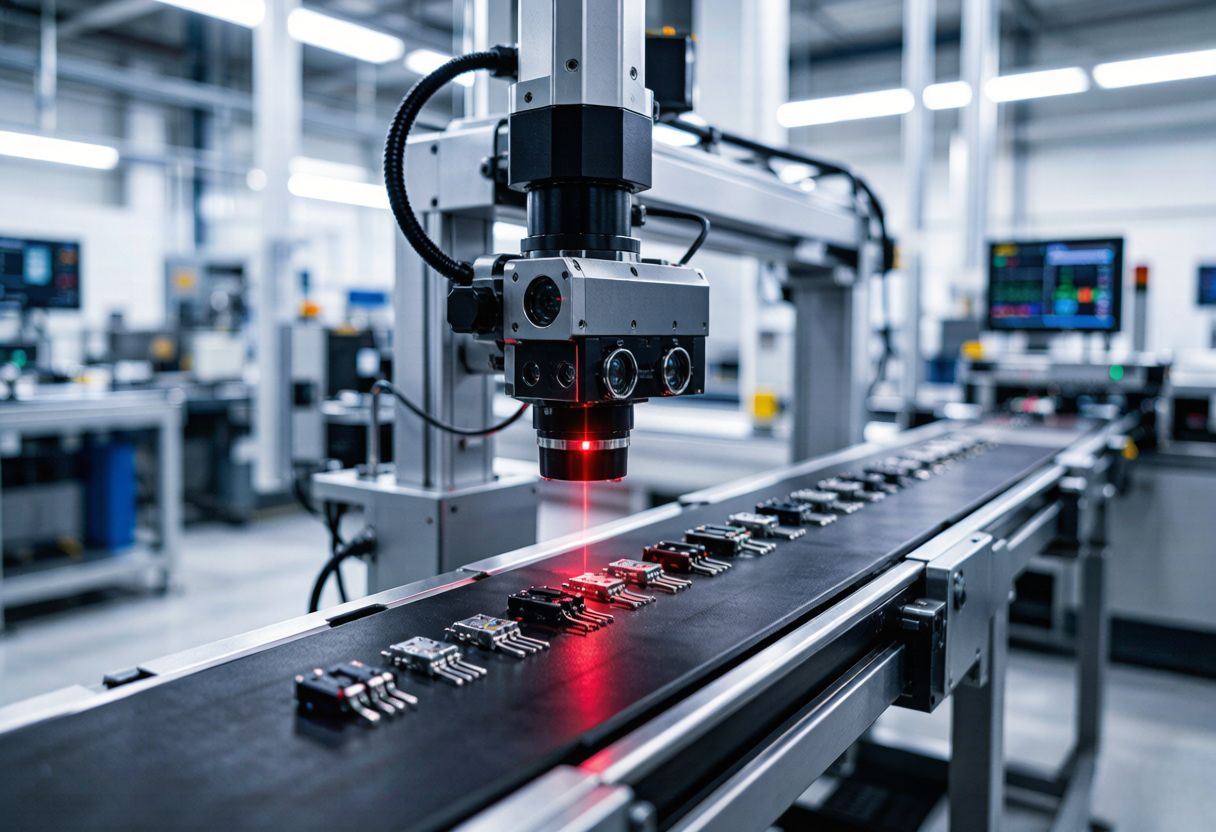

- Full Online Inspection: Deploy CCD visual full inspection equipment to monitor product size, burr and appearance in real time, realizing closed-loop quality control.

- Constant Temperature & Material Control: Stabilize workshop temperature and select high-tolerance-standard metal materials to avoid precision deviation caused by thermal deformation and material differences.

Conclusion

High-speed stamping is not a barrier to precision, but the best solution for high-efficiency and high-precision mass production of precision terminals. Reliable molds, stable equipment and refined process management can completely offset the minor fluctuations of high-speed operation, maintaining terminal precision within the industry standard tolerance range, and meeting the strict requirements of high-end electronic and new energy industries.
